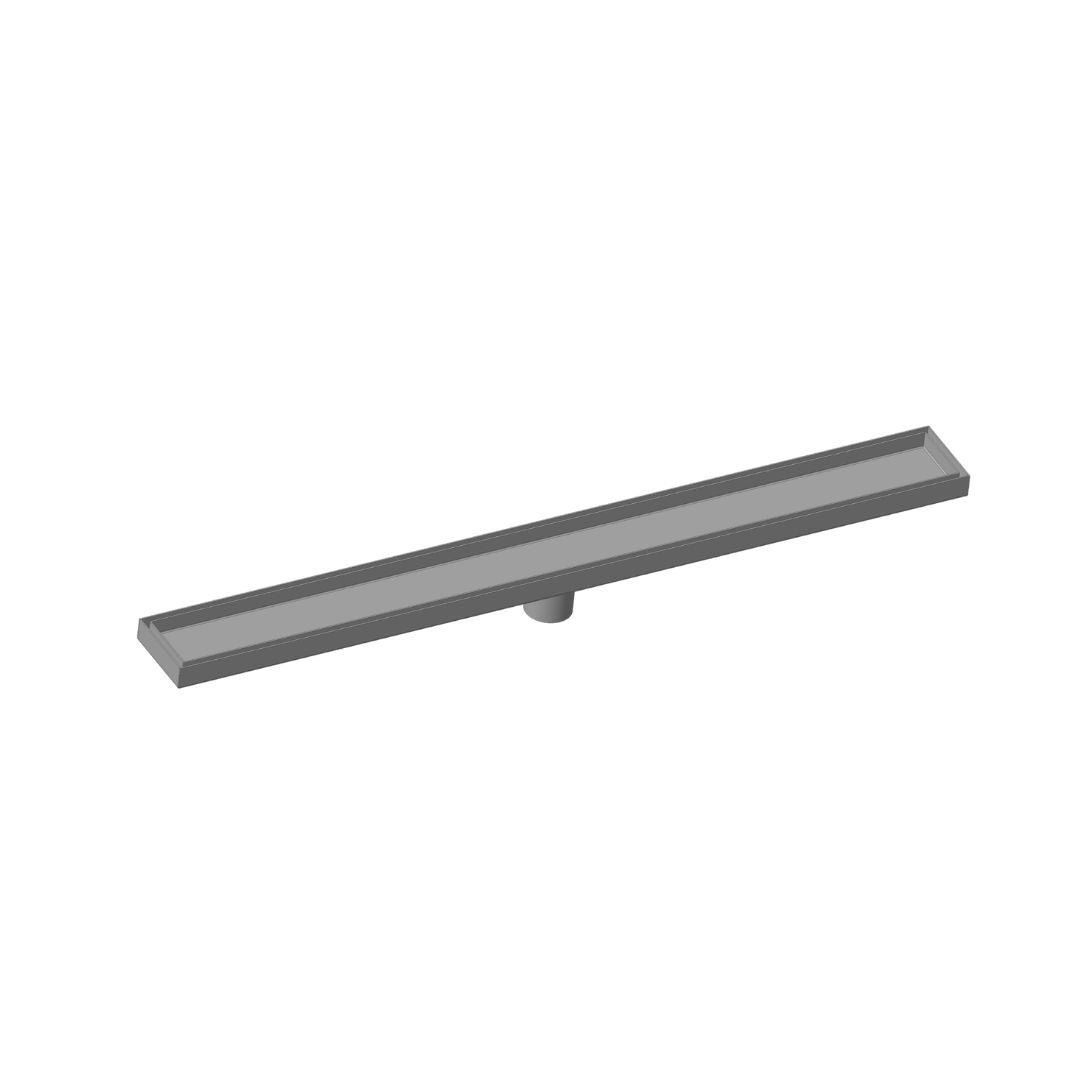

The FD-07 is a 36 inch tile insert floor waste made from 1.5mm Stainless Steel 304, in Black and Steel finishes. It’s the longest drain in our 3-inch tile insert range, made for extra-wide showers, open wet areas, balconies and large project floors where water must be caught along a full edge. Available for single and bulk orders from Fasi Global.

36 Inch Tile Insert Floor Waste for Extra-Wide Areas

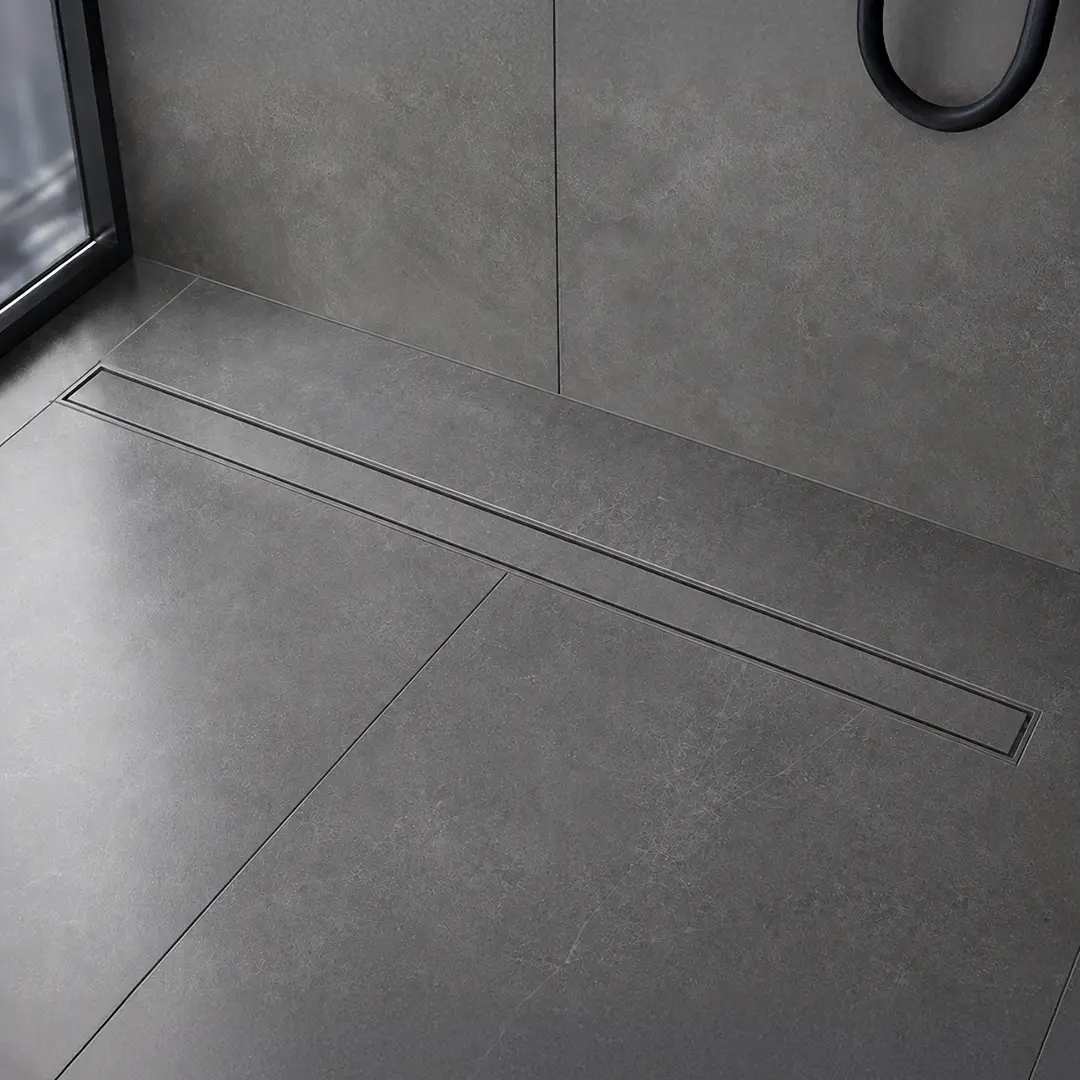

Some floors are too wide for a standard drain. The FD-07 runs 3 x 36 inches (3 ft), long enough to cover the full width of large walk-in showers, open wet rooms and wide balconies. That lets the floor slope in one direction toward a single drainage line, which is simpler to tile and gives a cleaner finish than several smaller drains.

The tile-insert top takes a strip of the surrounding floor tile, so even at 36 inches the drain stays low-profile and blends into the floor.

Stainless Steel 304 with 1.5mm Thickness

Made from Stainless Steel 304, the FD-07 resists rust and corrosion in areas exposed to water every day. At this length, rigidity matters most, and the 1.5mm thickness helps the full 36-inch body stay straight and level during installation and over years of use.

Where Contractors Use the FD-07

• Extra-wide walk-in showers and open wet rooms
• Full-width balcony and terrace drainage
• Garages, car porches and wash areas
• Laundry rooms, utility areas and kitchens
• Hotel bathrooms, commercial washrooms and apartment projects

Its smooth-flow construction helps prevent clogging, reducing maintenance call-backs after handover.

Black or Stainless Steel Finish

Choose Black for a strong architectural line across the floor, or Stainless Steel for a subtle, neutral finish. Complete the space with our SS 304 bathroom accessories.

Key Features

• Stainless Steel 304 for rust and corrosion resistance
• Tile-insert design for a flush, concealed finish
• 1.5mm thickness for rigidity along the full 36-inch length

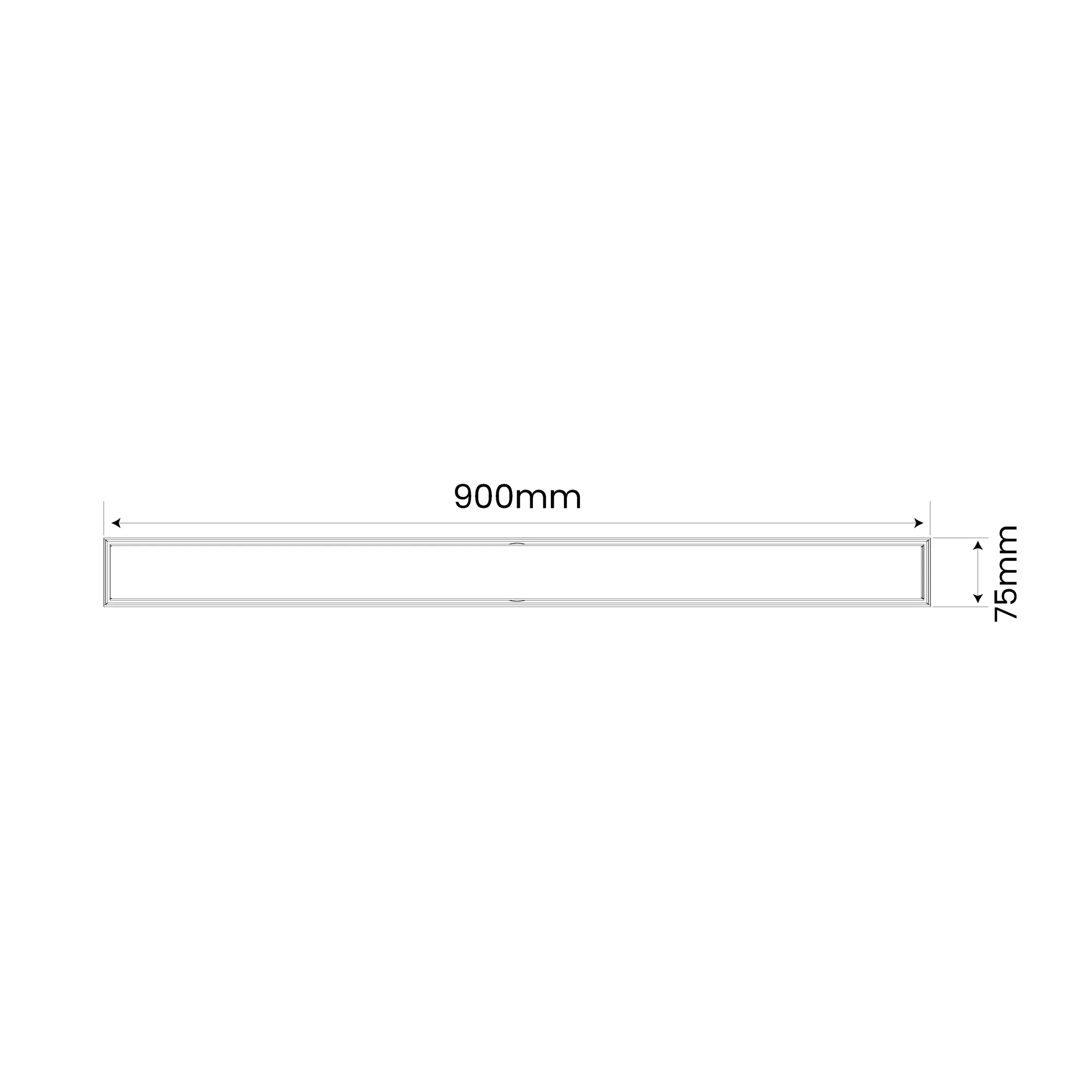

• Size: 3 x 36 inches (3 ft)
• Full-width drainage design for smooth water flow
• Available in Black and Stainless Steel finishes
• Suited to wide showers, wet rooms, balconies, garages and commercial projects

Compare Sizes in the Range

The FD-07 is the longest size in the series. The same SS 304, 1.5mm build is also available as:

• FD-06 3×24 Tile Insert Floor Waste for full-width standard showers
• FD-05 3×18 Tile Insert Floor Waste for mid-size showers
• FD-04 3×12 Tile Insert Floor Waste for compact bathrooms

For other channel styles, explore our linear drains, or browse the full floor waste collection.

Bulk and Project Orders

Fasi Global supplies stainless steel floor wastes and drains to contractors, builders and developers across Pakistan. For bulk quantities or project pricing on the FD-07, contact our team for a quote.

FAQs

What size is the FD-07 floor waste?

It is 3 x 36 inches: 3 inches wide and 36 inches (3 ft) long.

When should I choose 36 inch over 24 inch?

Choose the 36-inch FD-07 when the wet area is wider than a standard shower, such as large walk-in showers, open wet rooms, or balconies and garages that need drainage along a full edge. For standard shower widths, the 24-inch FD-06 is usually enough.

What material and thickness is it?

Stainless Steel 304 at 1.5mm thickness.

Which finishes are available?

Black and Stainless Steel.

Do you offer bulk pricing for contractors?

Yes. Bulk and project orders are available across Pakistan. Contact Fasi Global for a quote.
